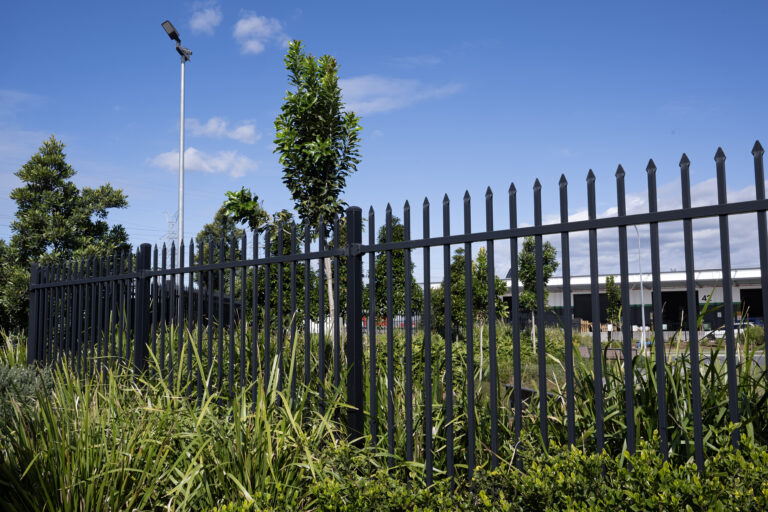

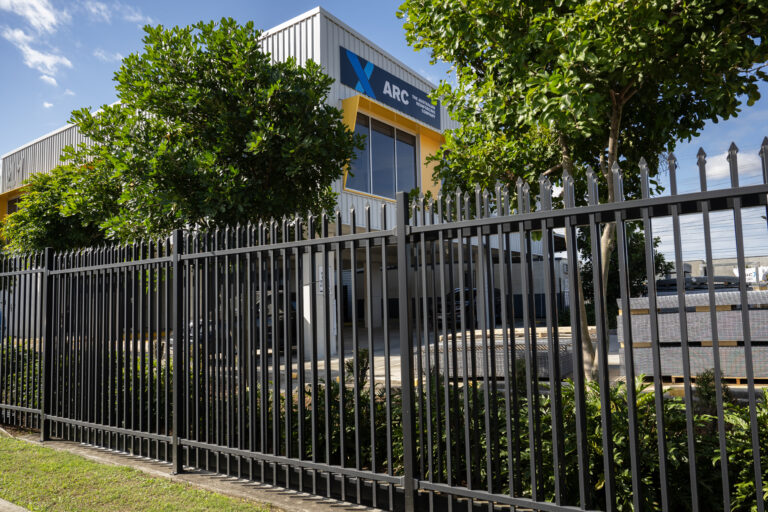

Tubular – Diplomat™
|Applications||Schools, Business, Railways & Commercial Properties|
|Design options||Through Rail|
|Accessories and fittings||Flanges – standard fixing to posts by 40mm x 40mm steel rail flanges and tek screws or anti-theft screws. They are anti tamper and provide you with peace of mind. They can be supplied on request. All gates comes complete with drop bolts, lugs, chain, striker and ball bearing hinges.|
|Sliding Gates can be priced on application||Double Gates are available in opening sizes up to 8000mm on request.|
|PANEL HEIGHTS (MM)||1800, 2100 or 2400|
|PANEL WIDTHS (MM)||2400|
|HORIZONTAL RAILS (MM)||40 x 40 x 1.6|
|VERTICAL PICKETS (MM)||25 x 25 x 1.2|
|TUBE SPACING||140mm Centres|
|INGROUND POST HEIGHT (MM)||From 2700 – 3600|
|STANDARD POSTS SPECS (MM)||65 x 65 x 2.0|
*Options may vary from State to State
We offer a wide variety of colours through the Dulux® Duralloy® powdercoat range of premium powdercoating that meets AS7315 and AAMA 2603 standards.
- Pearl White
- Pale Eucalypt
- Cottage Green
- Deep Brunswick Green
- Blue Ridge
- Woodland Grey
- Classic Cream
For a full range of colours available, please view the Dulux Powders Colour Selector.
Note: Duralloy® range only
All Dulux® Duralloy® range is manufactured with advanced durable polyester thermosetting powder and our panels are only powdercoated through an accredited Dulux® powdercoated centre to meet stringent quality conditions and finish, proudly applied in Australia.
